JUnit Architecture

The JUnit 5 Architecture: A Three-Part Harmony

Section titled “The JUnit 5 Architecture: A Three-Part Harmony”

JUnit 5 is not a single library. It is a collection of three distinct, high-level components:

  1. JUnit Jupiter: The new way to write tests. This is the combination of the new programming model and extension model. When you use @Test, @DisplayName, @ParameterizedTest, you are using the JUnit Jupiter API.
  2. JUnit Vintage: The bridge to the past. Its sole purpose is to allow you to run older JUnit 3 and JUnit 4 tests on the new JUnit 5 platform. This provides crucial backward compatibility, ensuring you don’t have to rewrite your entire existing test suite to adopt JUnit 5.
  3. JUnit Platform: The foundation upon which everything is built. It is the bridge between the world of tests (Jupiter, Vintage, or others) and the tools that run them (IDEs, Maven, Gradle).

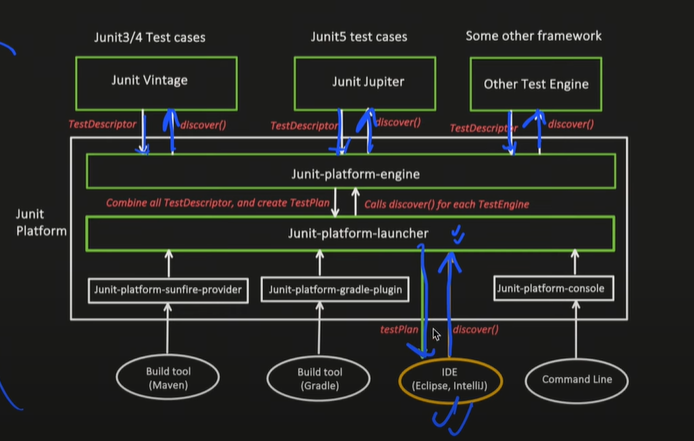

Now, let’s map these concepts to the diagram you provided.

Deconstructing the Diagram

Section titled “Deconstructing the Diagram”

Top Layer: The Test Engines

Section titled “Top Layer: The Test Engines”

At the very top, we have the different types of tests you can write. The diagram correctly identifies three potential sources:

  • JUnit Vintage: This is the TestEngine responsible for understanding and running tests written with JUnit 3 or 4’s annotations (e.g., org.junit.Test).
  • JUnit Jupiter: This is the primary TestEngine for JUnit 5. It knows how to find and execute tests written with the new Jupiter annotations (e.g., org.junit.jupiter.api.Test).
  • Other Test Engine: This is the most powerful concept. The JUnit Platform is TestEngine-agnostic. Anyone can write an engine to run any kind of test. Frameworks like Spock and Cucumber have written their own engines to run on the JUnit Platform.

The “Why”: This design decouples the writing of tests from the running of tests. It allows for innovation and prevents vendor lock-in, creating a standard platform for any testing framework on the JVM to plug into.

Middle Layer: The JUnit Platform Core

Section titled “Middle Layer: The JUnit Platform Core”

This is the heart of the operation, shown in the large white box in your diagram. It consists of two main components:

  1. junit-platform-engine: This defines the API that a TestEngine (like Jupiter or Vintage) must implement. It provides the contract for how a test engine discovers and executes tests. This is the “northbound” interface connecting the platform to the test frameworks.

  2. junit-platform-launcher: This is the crucial coordinator. It provides the API that tools like IntelliJ or Maven use to initiate a test run. Its primary job, as correctly highlighted with the discover() annotation in your diagram, is to:

    • Discover: Scan the classpath for available TestEngine implementations.
    • Delegate Discovery: Ask each engine to find test classes and methods that it understands.
    • Delegate Execution: Ask the appropriate engine to execute the tests that were found.

The “Why”: The Launcher is the universal orchestrator. Your IDE or build tool doesn’t need to know anything about JUnit Jupiter or JUnit Vintage. It only needs to know how to talk to the Launcher. The Launcher then figures out the rest, acting as a powerful abstraction layer.

Bottom Layer: The Launchers & Providers

Section titled “Bottom Layer: The Launchers & Providers”

This layer represents the clients of the junit-platform-launcher. These are the tools you interact with every day.

  • Build Tools (Maven & Gradle):

    • junit-platform-surefire-provider: This is the plugin that allows Maven’s surefire plugin (the default test runner) to talk to the junit-platform-launcher.
    • junit-platform-gradle-plugin: This is the equivalent for Gradle.

  • IDEs (IntelliJ, Eclipse): As your diagram correctly indicates with the yellow arrow, IDEs typically have their own native integration. When you click the “run test” button, the IDE directly invokes the junit-platform-launcher to discover and run the tests, and then displays the results in a user-friendly way.

  • Command Line:

    • junit-platform-console: A standalone executable that allows you to run tests directly from the command line, outside of any build tool.

The “Why”: This layer provides the final link in the chain, making the entire platform accessible and usable from any development environment. The loose coupling means that as long as a tool knows how to use the launcher, it automatically supports any and all test engines that exist now or may be created in the future.

Interview Gold

Section titled “Interview Gold”

  • Question: “Can you sketch the high-level architecture of JUnit 5 and explain why it’s a significant improvement over JUnit 4?”

    • Answer: “Absolutely. The JUnit 5 architecture is fundamentally composed of three parts: the JUnit Platform, JUnit Jupiter, and JUnit Vintage. At the top, you have your test cases, which can be written using the new Jupiter API or legacy JUnit 4 syntax. These are understood by their respective ‘Test Engines’—Jupiter for new tests and Vintage for old ones. Both of these engines plug into the central JUnit Platform. The platform’s core is the ‘Launcher,’ which acts as the single point of contact for all tools like IDEs, Maven, and Gradle. When a test run is initiated, the tool tells the Launcher to start. The Launcher then discovers all available Test Engines on the classpath, asks them to find tests they can run, and then instructs them to execute those tests. This is a massive improvement over JUnit 4’s monolithic design because it decouples the API for writing tests from the engine that runs them. This modularity provides backward compatibility through JUnit Vintage and, more importantly, makes the platform extensible, allowing other testing frameworks like Spock or Cucumber to run on the same platform, which was not possible before.”
